Lightweight Four Channel Relay Module For Arduino , Red Board

Product Categories

Oky Newstar Technology Co., Ltd

Contact Now

Brand Name : OEM

Model Number : OKY2013-3

Place of Origin : Guangdong,China(mainland)

MOQ : 10pieces

Price : USD $2.76- $3.45

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pieces/per day

Delivery Time : 1-3 working days after payment

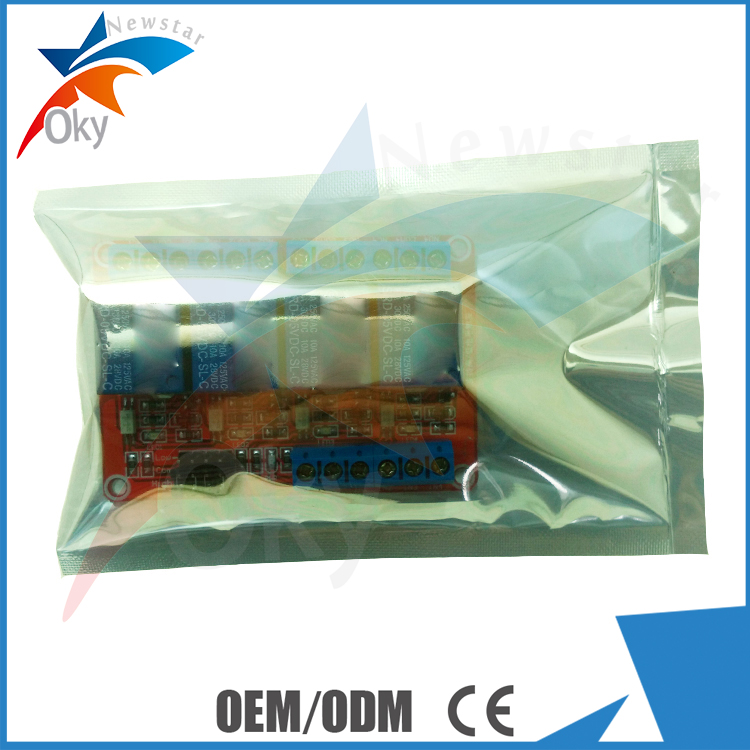

Packaging Details : plastic bag

Maximum load : AC 250V / 10A, DC 30V / 10A

voltage : 5V, 12V, 24V

Size : 73mm(L) * 50mm(W) * 18.5mm(H)

Name : 5V/12V/24V 4 Channel Relay Module

Weight : 72g

Item Condition : 100% Brand New

Channel : 4 Channel

Contact Now

Lightweight Four Channel Relay Module For Arduino , Red Board

Specification:

module voltage	5V, 12V, 24V
module size	73mm * 50mm * 18.5mm (L * W * H)
Current	10A
Weight	72g
Channel	4

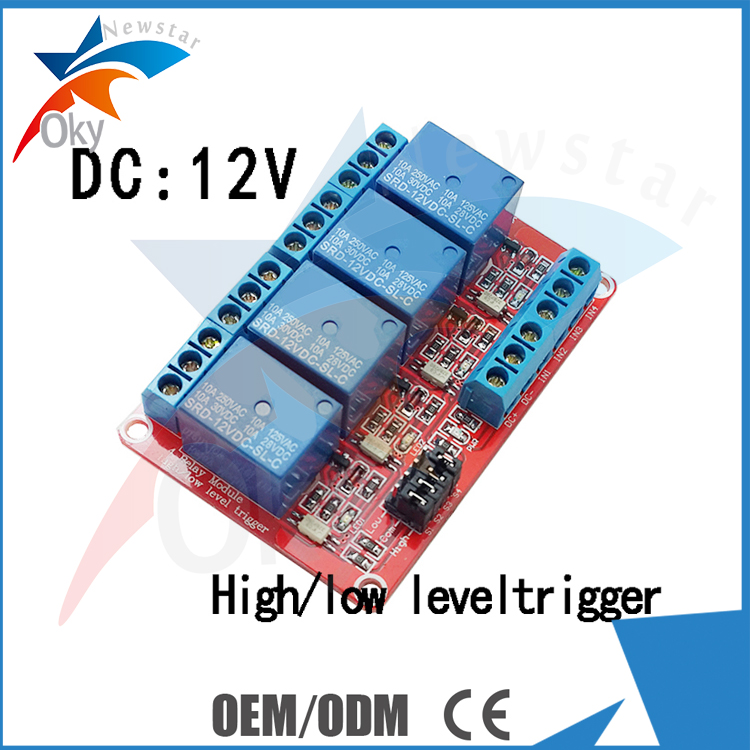

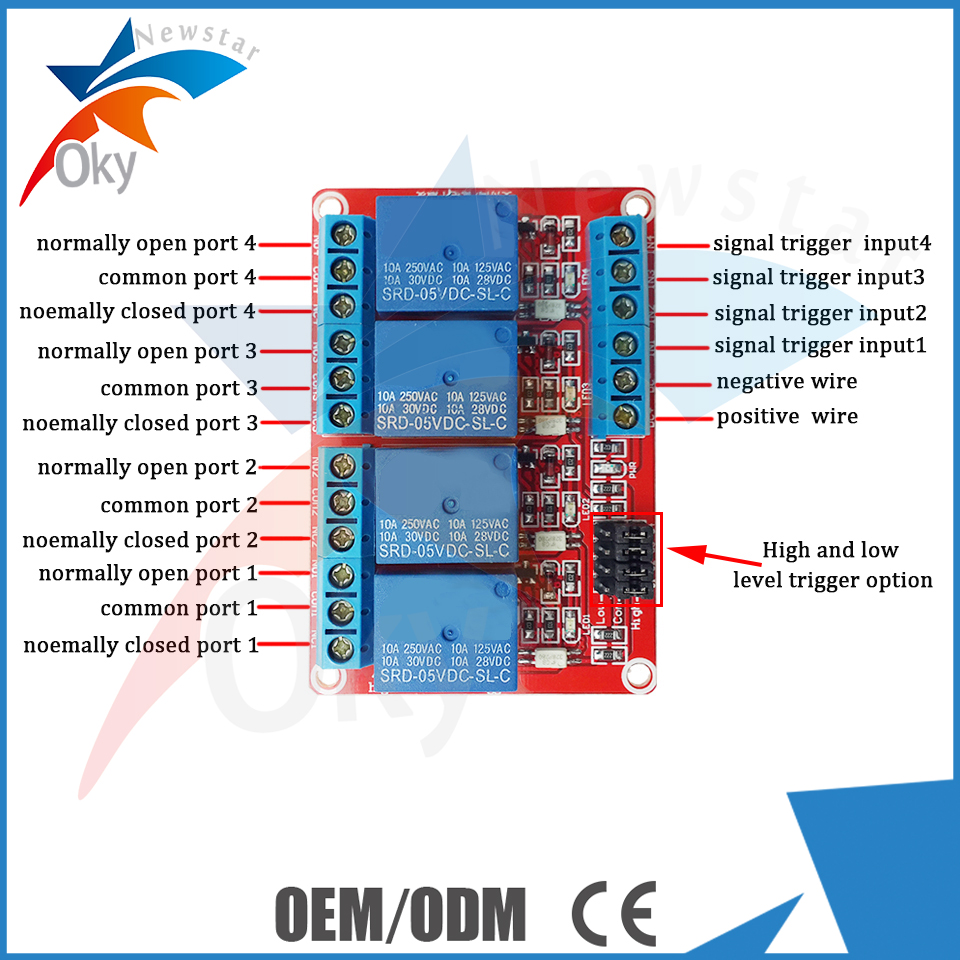

Description	* SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA * Each channel module can be set high or low triggered by jumper * Fault-tolerant design, even if the control line is broken, the relay will not operate * Power indicator (green), 4 relay state indicator (red) * Interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient * The module has 4 mounting bolts holes, hole 3.1mm, spacing 67mm * 44.5mm

Lightweight Four Channel Relay Module For Arduino , Red Board

Our Team:

Lightweight Four Channel Relay Module For Arduino , Red Board

Awards:

Lightweight Four Channel Relay Module For Arduino , Red Board

FQA:

1. What is the delivery time?

Normally, 1-5 workdays after payment;

Special requirement orders, delivery time is negotiable.

2. If the products can’t work after receiving it,what should I do?

We will replace new items for you at once, and respect your final decision for wrong goods.

3. If the products don’t meet my demand after I received it,can I return it?

Yes,no problem.

You can return back to us, we will refund your full payment.

Product Tags:
