Single LED 7 Segment Display Module For Arduino With Reverse Voltage 5V

Brand Name : oem

Model Number : module for Arduino

Place of Origin : Guangdong China (Mainland)

MOQ : 5 Piece/Pieces

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Supply Ability : 10000 Piece/Pieces per Day

Delivery Time : 1-5 workdays after payment

Packaging Details : 10.0 * 10.0 * 5.0 ( cm )

Usage : Indoor

REF material : PPC

Digital Dimension : 25.4mm(L)X14mm(W)

Pixels : 20mm

Pin Diameter : 0.5 mm

size : 0.4 inch

Outer Dimension : 34mmX24mmX10.5mm

Contact Now

Single LED 7 Segment Display Module For Arduino With Reverse Voltage 5V

specification of led display modules

1.Electrical optical charactertistics(Ta25°C)

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Luminous Intensity	IV	165	182	185	mcd	IF=20mA
Peak Wavelength	λp				nm	IF=20mA
Dominant Wavelength	λd	510	511	512	nm	IF=20mA
Forward Voltage	Vf	3.0	3.2	3.5	V	IF=20mA
Reverse Current	IR			50	uA	VR=5V
Suggestion Forward Current	IF	3	5-10	20	mA	IF=20mA

2.Absolute Maximum Ratings (Ta=25°C):

Parameter	Rating	Unit
Reverse Voltage	5	V
Power Dissipation,Per Dice	50	mW/chip
Operating Temperature Ranger	-48~+85	°C
Storage Humidity	45%~85%	°F
Storage Temperature Ranger	-40~+90	°C
Soldering Temperature	260°C For 3 Seconds
Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width)	100	mA/chip
Continuous Forward Current	20	mA/chip

Competitive Advantage:
1.Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around The Globe.
4. High Quality With Global Standards.
5. 3 year factory warranty
6. Safe shipping way and payment

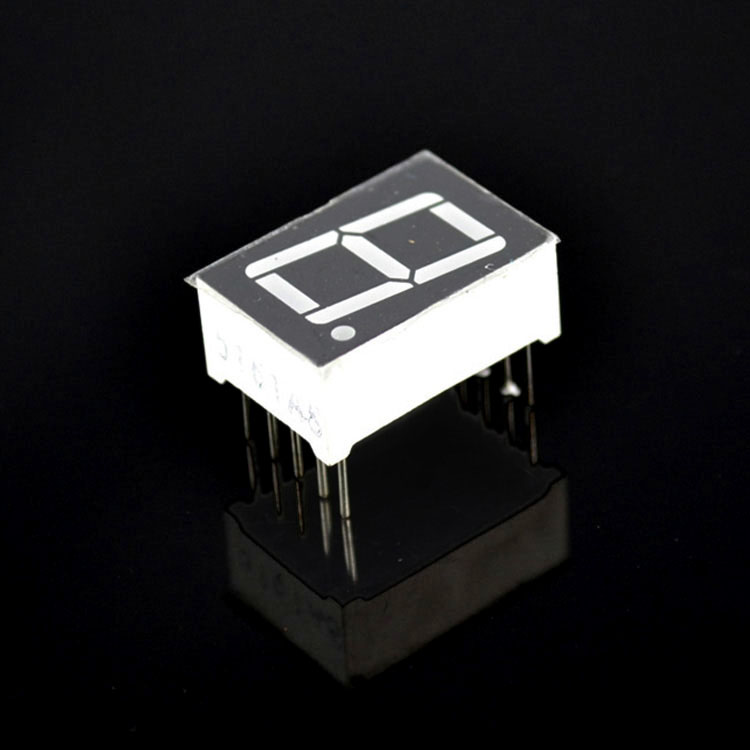

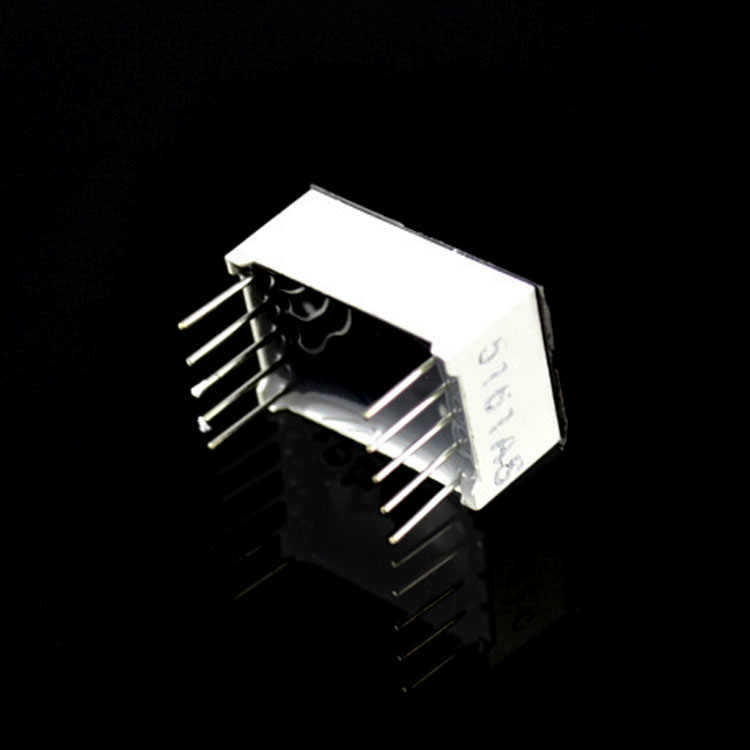

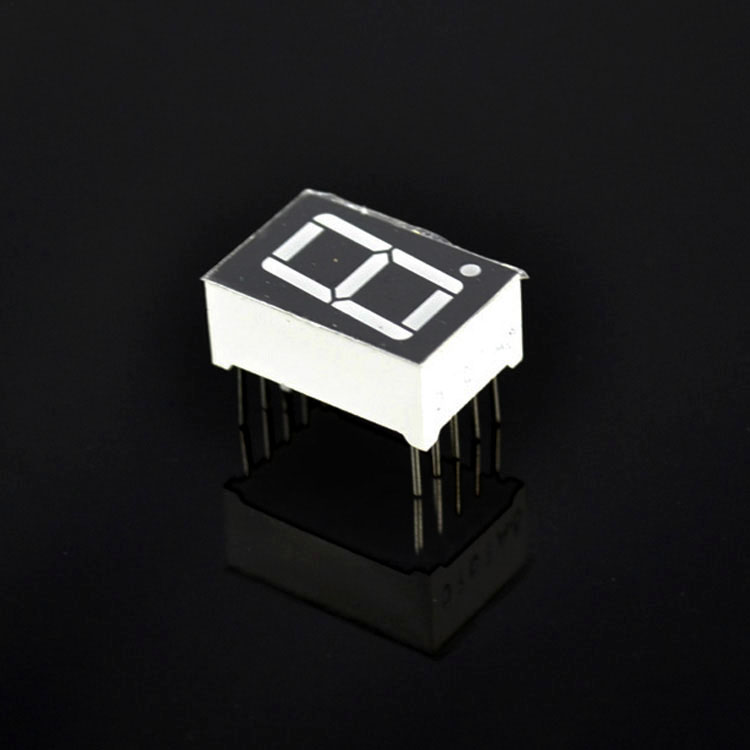

Photos:
Single LED 7 Segment Display Module For Arduino With Reverse Voltage 5V
