3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino

Brand Name : OEM

Model Number : OKY0026

Place of Origin : Guangdong China(Mainland)

MOQ : 10pcs

Price : US $0.41 - 0.49/ Piece

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P,

Supply Ability : 10000 pieces per day

Delivery Time : 1-3 work days after payment

Packaging Details : Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS)

PRODUCT NAME : 3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino

Output voltage : 3.3V,5V

Input voltage : 6.5-12V ( DC )

color : as pictures

Contact Now

3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino





Description

A 3.3V and 5V Breadboard Power Supply Module with series diode, polarity reversal protection. The module can take 6.5V to 12V input and can produce 3.3V and +5V. Its a must have product for experimenters those have to test/prototype electronic circuits on breadboard or perforated/veroboards.

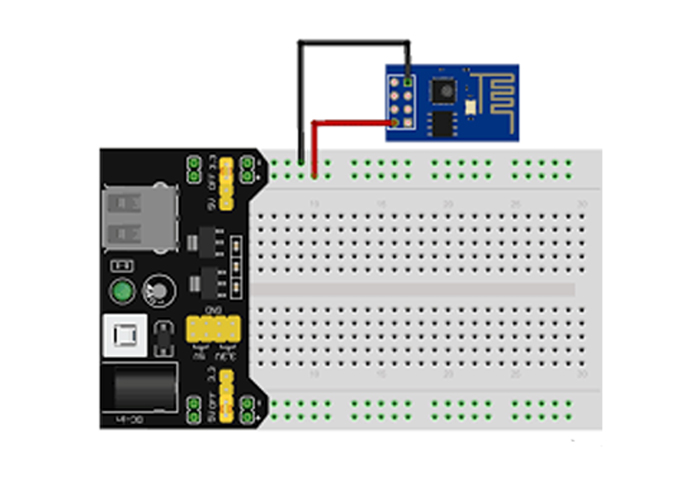

Easily provide power to your breadboard projects from a DC wall wart power supply (compatible with any of our breadboards). The board has dual independent outputs, allowing for 3.3v or 5v to be output on each side into the power connections of your breadboard project. Select one side of your breadboard to have 3.3v and the other side power inputs can be 5v DC. Jumpers located on the top of the board allow for the setting of the output voltages.



Specification

Breadboard power supply module, with 5 V, 3.3 V output voltages
Apply to MB102 Standard breadboard
Input voltage: 6.5-12 V (DC) or 5V USB power supply
Output voltage: 3.3V and 5V can switch over
Maximum output current: <700 ma
Input voltage ON/OFF switch
Independent control of upper and Lower Bread Board Power Rails. Can switch over to 0 V, 3.3 V, 5 V using jumpers on any rail.
On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
Connectors:
1x Barrel 5mm Connector (center +ve) for Input Power
1x USB connector for 5V input or 5V output
4x 2Pin Headers pointing downward for 3.3V or 5V output
1x 2×4 Header for 3.3V and 5V output
2x 1×4 selection jumper for 3.3V/OFF/5V
Please note: This item only comes with a Power Supply Module, Breadboard is not included





Competitive Advantage:

1.Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around The Globe.
4. High Quality With Global Standards.
5. 3 year factory warranty
6. Safe shipping way and payment


Package Included:
1pc 3.3V/5V MB102 Breadboard Power Supply Module



3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino

3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino



More Products:

3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino UNO R3 + breadboard 400 point + 9V battery snap Starter Learning Kit 3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino
HC-06 Bluetooth Wireless Module
3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino Mega 2560 R3 ( CH340G ) 3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino HC-SR501 Human body Pyroelectric Infrared sensor PIR
3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino DC 5V Stepper Motor 28BYJ-48 + ULN2003 Driver Test Module 3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino Ultrasonic Sensor HC-SR04
3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino LCD 1602 I2C module
(Yellow Green light)
( Red board module)
3.3V/5V MB102 Breadboard Power Supply Module For DIY Project Arduino 20cm Male TO Female 40Pin Solderless Jumper Breadboard Wires


FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
