Prusa Mendel i2 RepRap HQ 3D Printer Complete Kit Universal Desktop

Oky Newstar Technology Co., Ltd
Contact Now

Prusa Mendel i2 RepRap HQ 3D Printer Complete Kit Universal Desktop

Brand Name : OEM

Model Number : OKY7006

Place of Origin : Guangdong China(Mainland)

MOQ : 1 peice

Price : USD $315.00/pc

Supply Ability : 10000 peices per day

Delivery Time : 1-3 work days after payment

Packaging Details : standard package

Hotend Nozzle Size : 0.3mm(default), 0.35mm, 0.4mm, 0.5mm

Material : ABS/PLA 1.75 Mm,3mm

XY Precision : 0.012mm

Power Input : 100-120VAC/4.8A or 200-240VAC/2.4A

Power output : DC12V/ 29A

Connectivity : USB, TF card (included) (support off-line printing)

factory price : yes

Brand : 100% newe

color : showed in picture

original : China

Contact Now

Prusa Mendel i2 RepRap HQ 3D Printer Complete Kit Universal Desktop







Description:

 Prusa Mendel Iteration 2 is a simpler remix of normal Mendel.It is an improvement of the Prusa Mendel

(iteration 1), and was released in November 2011.



The following is a list of the main improvements made on the original Prusa:

1. More parts are made to be push-fit

2. The carriages accommodate bushings and linear bearings

3. Nut traps were added to parts that were attached with M3 screws (e.g. endstop holders etc.)

4. The second bed plate was removed (The PCB heatbed is the second plate)

5. The belts were changed to GT5 belts - it is recommended to buy professional belt pulleys

6. Most M4 screws were changed to M3s

7. A printed plastic belt guide was designed to replace the large M8x30 fender washers

8. The belt clamp was redesigned



Features:

1.Printing area:200x200x100mm

2.New designed hotend version 2.0 with 2pcs 0.35mm nozzle,easy to disassemble and clean.

3.Perfect extruder with more durable X-carriage printed from 3mm ABS filament.

4.Universal Arylic controller board support plate makes your controller board selectable.Melzi Ardentissimo

 ,Teensylu 0.7,Sanguinololu v1.3a,Ramps 1.4,Generation 6, Printerboard rev D,Brainwave and Azteeg X1

 to choose from.

5.Come with super smooth Borosilicate glass,easy to remove printing parts,print toys with flat bottom.

6.New stepper motors Nema17,large torque to print smoothly,avoid mistakes caused by friction.

7.Ultra smooth Z movement and couplings with revised X-end-idler.

8. Power supply S-350-12 12V 29A DC included.



PRINTING:

Print Technology: Fused Filament Fabrication(FFF)
Layer Resolution: 0.3mm, [0.0118 in]
Positioning Precision: 0.3mm, [0.0118 in]
Filament Type:ABS/ PLA (ABS used only when hot bed is equipped)
Filament Diameter: 1.75 mm [0.069 in], 3mm [0.118 in]
Nozzle Diameter: 0.3mm [ 0.0112 in], 0.35mm [0.013 in], 0.4 mm [0.015 in], 0.5mm [ 0.019 in]


MECHANICAL:
Body: threaded rod + Acrylic plate
Build Platform: Borosilicate glass + Aluminium plate


SOFTWARE:
Software:  Repetier-Host,Printrun
File Types: .stl
Supports: Windows/Mac/Linux


TEMPERATURE:
Max Heated Bed Temp: about 110 ℃ [230°F]
Max Extruder Temp: about 240 ℃   [464° F]





Competitive Advantages:

1. Convenient & Friendly Customer Service.

2. Low Prices Direct From Factory Suppliers.

3. Fast Delivery Around the World.

4. High Quality With Global Standards.

5. High Quality With Global Standards.

6. 1 Year Factory Warranty.6. Safe Shipping Way and Payment



Warm Note:

Welcome ODM/OEM orders we are professional to improve,design,process,manufacture products

according to your requirement .



PHOTOS:

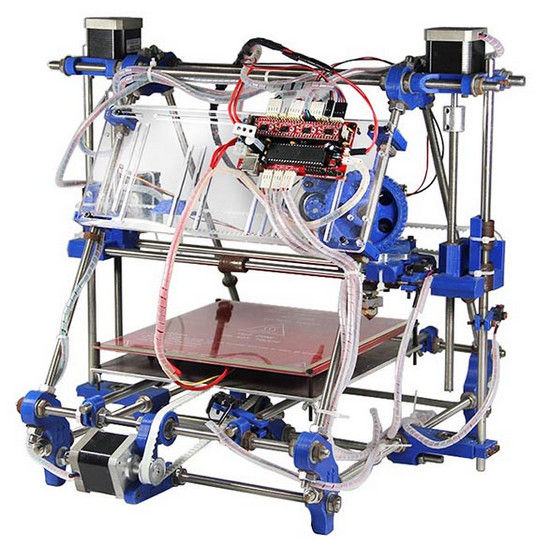

Prusa Mendel i2 RepRap HQ 3D Printer Complete Kit Universal Desktop

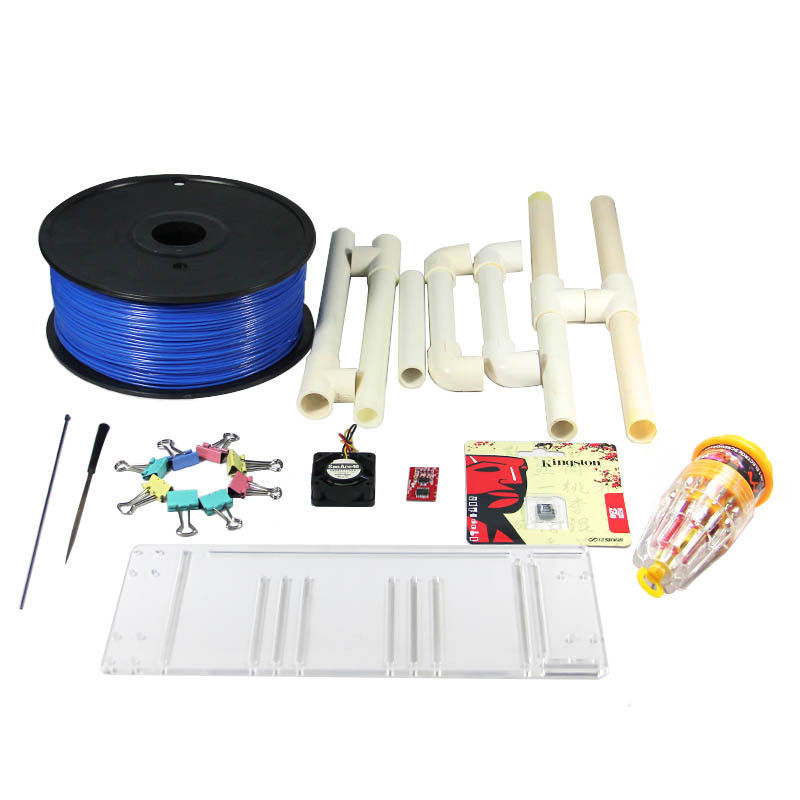

Prusa Mendel i2 RepRap HQ 3D Printer Complete Kit Universal Desktop

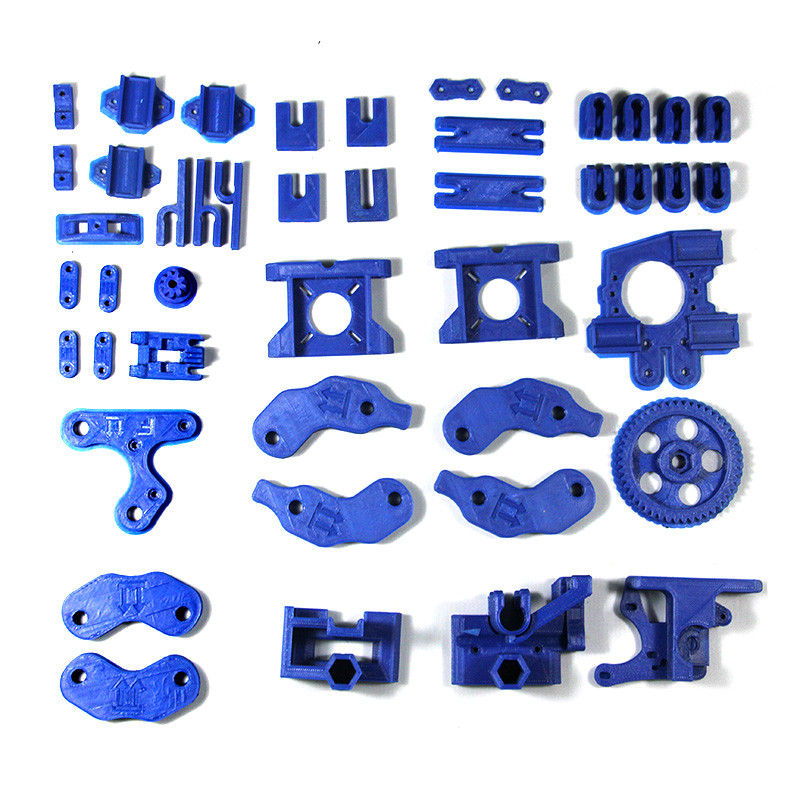

Prusa Mendel i2 RepRap HQ 3D Printer Complete Kit Universal Desktop

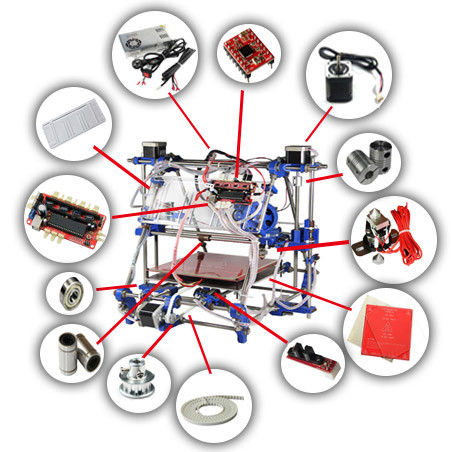

Prusa Mendel i2 RepRap HQ 3D Printer Complete Kit Universal Desktop
