RFID Reader IC Card Proximity Module for Arduino , Red RC522 Card Read Antenna module arduino
Features:
| Idle Current : | 10-13mA / DC 3.3V |
| Sleep current: | <80uA ; Peak current: <30mA |
| Operating Frequency: | 13.56MHz |
| Supported card types: | S50, S70, UltraLight, Pro, Desfire |
| Operating temperature: | -20-80 degrees |
| Storage temperature: | -40-85 degrees |
| Relative Humidity: | 5% -95% |
| Data Transfer Rate: | Max.10Mbit /s |
| Product Physical Characteristics Dimensions: | 40mm×60mm |
| Dimension(cm) | 6.6 x 4.0 x 0.8 |
| Weight: | 19g |
Descriptions:
1.MF RC522 is applied to the highly integrated read and write 13.56MHz contactless communication card chip, NXP launched by the company for the "table" application of a low-voltage, low-cost, small size of non-contact card chip, smart meters and portable handheld devices developed better choice. The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. In addition, support rapid CRYPTO1 encryption algorithm, terminology validation products. MFRC522 support series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s. As new members of the 13.56MHz reader card series of highly integrated chip family, MF RC522 MF RC500 MF RC530 There are a lot of similarities, but also have many of the characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs.
2.The original Philips MFRC522 chip design circuit card reader, easy to use, low cost, and applies to the user equipment development, the reader and the development of advanced applications, the need for the user RF card terminal design/production. This module can be directly loaded into the various reader molds. Utilizes a voltage of 3.3V, through the SPI interface simple few lines directly with any user CPU motherboard connected communication can ensure that the module is stable and reliable work, distance card reader
Package includes:

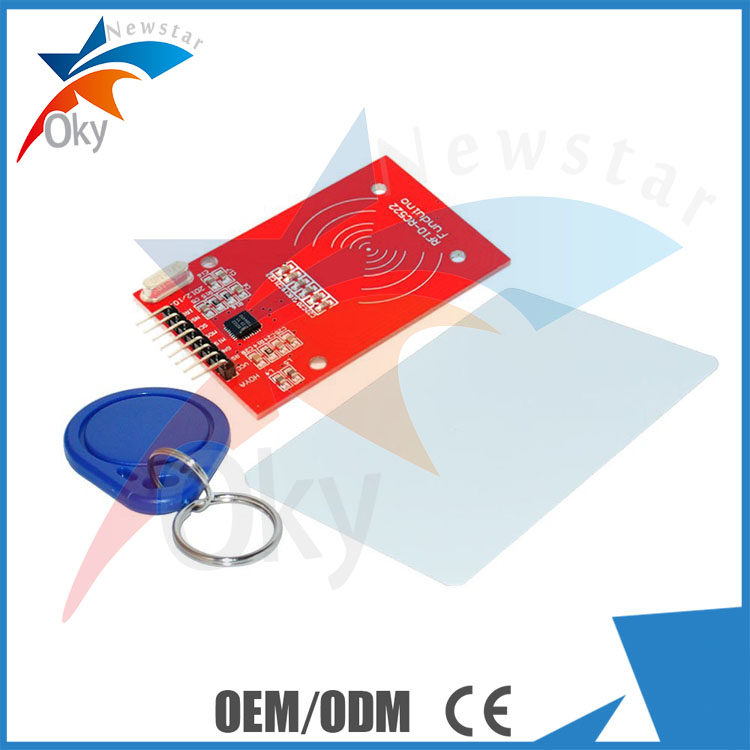

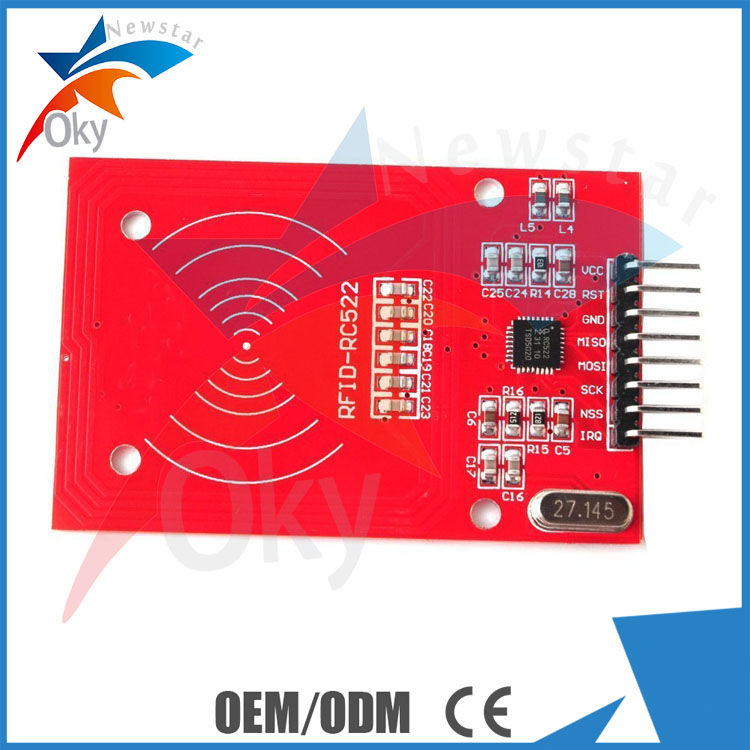

1 x RFID-RC522 module
1 x The standard S50 blank card (Non-contact IC card)
1 x S50 special-shaped card a (as shown by the key ring shape)
The pins to the Raspberry PI:
VCC- pin 1, 3.3 volts
RST- pin 22, GPIO25
GND- pins, 6, 9, 14, 20, or 25, I personally used pin 6
MISO- pin 21, GPIO9
MOSI- pin 19, GPIO10
SCK- pin 23, GPIO11
NSS- pin 24, GPIO7
IRQ- Don’t Attach to rpi
